AUTOflow Version 2

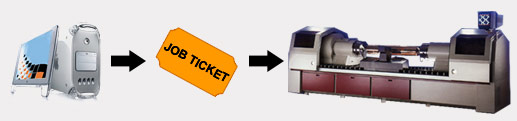

Integrated, automated workflow system from Mac/PC to Ohio engravers

  • Typically four times faster than previous preparation!!
  • For automated cylinder preparation from Mac/PC to the engravers for PS and/or TIFF and
    repeated and/or 1-up file input.
  • Streamlines import and processing of graphic images for engraving.
  • Includes Job Ticket based software JTC, for once only input of the Job Ticket and transfer
    of set-up values into the CCS. Many Job Tickets can
    be created in advance.
  • Includes software PC-REI for matching cylinders with respective TIFF flles, and for once only
    input of screens, screen angles, gradations, edge enhancements etc. PC-REI rescreens
    automatically to the cylinder on the fast PC, thus offloading the slow IPW of this heavy,
    intensive work.
  • Processing on standard, fast WINDOWS® PC.
  • Easy to use from Mac® with drag and drop hotfolders.
  • Offloads operators and IPW workstation.
  • Compatible to RIP-WIN, HD-ARC, CD-ARC, QUAD, PackEdge® interface.
  • Standard version for layouting in separate photographic/MAC department, oroptional for
    layouting in engraving department.
