FEATURES
Precise, non destructive thickness measurement from all angles.

New Smaller, handier size.

New Larger front LCD display, plus second top display for safe and convenient reading in any position.

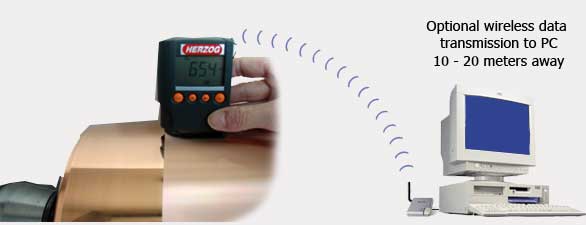

New Standard integrated radio transmitter for wireless transmission of mea-surements directly to a computer 10 to 20 m away. Data is transferred into an Excel spreadsheet using the optional software PC-DATEX. Optional RS232 receiver required.

New Besides determining the copper thickness, also further material can be measured: paint, lacquer, synthetic or anodized coatings on all nonmagnetic
materials such as aluminum, copper, brass or stainless steel using the eddy current

method according DIN EN ISO 2360. In addition it measures zinc, chromium, copper, paint, lacquer, synthetic coatings on steel and iron using the magnetic method according DIN EN ISO 2178.

New The instrument automatically recognizes the substrate material and selects the appropriate measuring method.

Automatic on-off function.

Ready to measure right away without calibration.

Memory for up to 1000 measurements. Data is retained even without batteries.

Statistical evaluation.

Calibration with included foil.


TECHNICAL DATA
Measurement Range : 0 – 2000 micron
Interface (optional)   : Radio 868 MHz EU / 915 MHz US
Weight : 60 g without batteries
Dimensions : 64 x 30 x 85 mm
Batteries : 2 x LR6.AA
Protection Class : IP52
