Cell-Test

  • For measuring cell dimensions
  • For cell images
  • With optional software TEST-ARC for digital archiving of the cell images in PC server

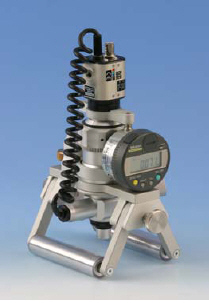

PRECICHECK LIGHT

¨ Magnifications 2x, 4x, 6x, 20x.

¨ Precise rotating device with crosshairs for lenses; for measuring of cell walls etc.

¨ Two calibration plates with scale 0,1 mm and 0,01 mm.

¨ Coaxial LED light, plus separate light source for checking prints.

¨ User software on CD in 12 ope-rator selectable languages: English, German, Spanish, Portuguese, French,

     Italian, Dutch etc.

¨ Mains adaptor 230 Volt 50 Hz, with 3 m cable (per request 5 m).

¨ Aluminum case for protection and transport.

¨ Easy to install grabber board for buyer's PC.

¨ Buyer to supply normal PC or laptop with color monitor, mouse, keyboard and if desired printer. Recommended

     operating systems are WINDOWS® 2000, xp or 98 and standard Matrox graphic board 32 MB.



Option: TEST-ARC ARCHIVING SOFTWARE

¨ Software to store images of test cuts or of calibration grayscales from a video microscope on PC harddisk.

¨ Input images are in TIFF or JEPEG format.

¨ Required is HD-ARC
